Blackbody Calibration Source

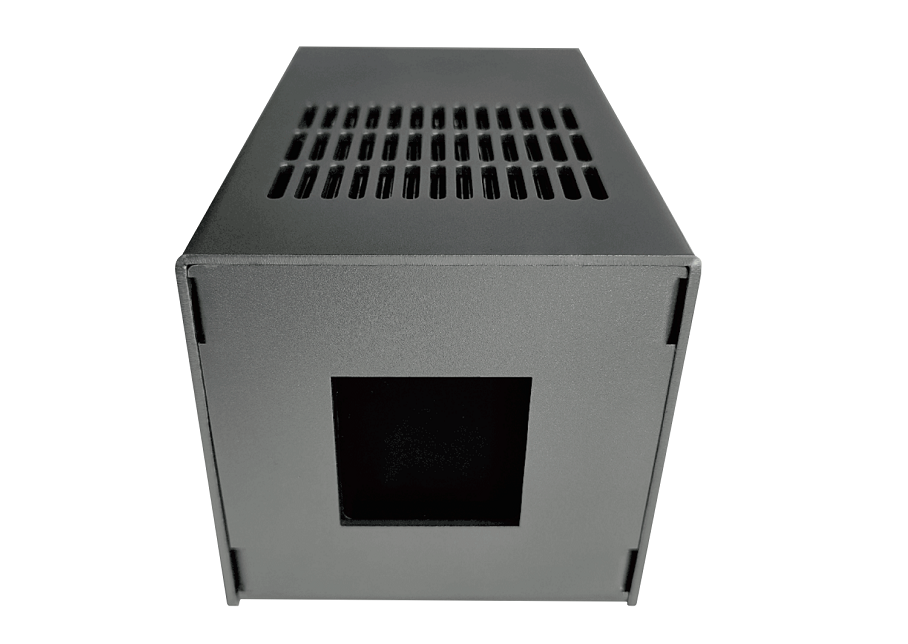

The BB40-2 Series Ultra-small Blackbody Radiation Calibration Source is an all-in-one heating and cooling blackbody calibrator device with exceptional portability – designed for precision calibration in confined spaces and field applications. It is well suited for the precise calibration and verification of non-contact infrared thermometers, thermal imaging cameras, FPA (focal plane arrays), pyrometers, heat flux meters, and pectroradiometers/photometers.
Product Overview
Redefining Portable Calibration
The BB40-2 Series Blackbody Calibrator combines heating and cooling capabilities in an ultra-compact form factor, delivering laboratory-grade precision in a device small enough for fieldwork and confined spaces.
Ultra-compact Design
The dimension just 90×90×145mm, it fits easily in confined spaces.
Dual Functionality
Integrates both heating and cooling capabilities in one compact unit for versatile calibration.
Ultra Lightweight
Starting at just 1010g, it’s ideal for field calibration work where portability is critical.
Rapid Stabilization
Reaches set temperature in 30 seconds, minimizing wait times during calibration sequences.
Optimal Source Size
36×36mm source size provides ideal target area for most industrial infrared thermometers and thermal imagers.
Flexible Power Options
12V power supply with included 220V adapter ensures compatibility with standard power sources worldwide.
Product Details
Technical Specifications
portable temperature calibration source
| Parameter | Details |
|---|---|
| Source Size | 36×36mm |
| Cooling Range | Ambient Temperature minus 25℃ to 50℃ |
| Heating Range | Ambient Temperature plus 60℃, maximum heating to 90℃ |
| Temperature Stability | ≤0.05℃ |
| Temperature Uniformity | ≤0.05℃ |
| Emissivity | 0.998 (typical) |
| Temperature Stabilization Time | 30 seconds |
| Power Supply | 12V DC (with 220V AC adapter included) |
| Housing Material | Aluminum Alloy |
| Weight | 1010g (BB40-201,BB40-202),1300g (BB40-203） |
| Dimensions | 90×90×145mm (BB40-201,BB40-202), 80×100×200mm (BB40-203） |
| Operating Environment | -30℃~+50℃ Operating Temperature, 3~95% RH (non-condensing) |
Model Classification
| Model | Window structure | Cooling range | Heating range | Dimension(mm) |
|---|---|---|---|---|
| BB40-201 | Square Aperture | Ambient Temperature minus 30℃ | Ambient Temperature plus 60℃, maximum heating to 90℃ | 90×90×145 |
| BB40-202 | Square Aperture | Ambient Temperature minus 40℃ | Ambient Temperature plus 60℃, maximum heating to 90℃ | 90×90×145 |
| BB40-203 | Square Aperture | Ambient Temperature minus 50℃ | Ambient Temperature plus 60℃, maximum heating to 90℃ | 80x100x200 |
Industrial Applications
Infrared blackboday calibrator
Application Target Industries Including: Metrology &Calibration, Power Generation, Chemical Processing, Food Manufacturing, AutomotiveProduction, Environmental Monitoring.
Field Calibration Services
Employed by third-party metrology firms for on-site verification of handheld IR thermometers at small-to-medium manufacturing facilities, eliminating the need for transporting heavy equipment.
Semiconductor Wafer Calibration
Integrated into cleanrooms to calibrate pyrometers monitoring wafer temperatures during deposition or etching processes. Its small footprint fits perfectly in confined chamber spaces.
Low-temperature Material Research
Used in physics labs to simulate cryogenic conditions (-30℃~-50℃) for testing thermal radiation properties of polymers, composites, and advanced materials.
Field Calibration Services
Employed by third-party metrology firms for on-site verification of handheld IR thermometers at small-to-medium manufacturing facilities, eliminating the need for transporting heavy equipment.
FAQ
BB500 Mid-temperature iR temperature Blackbody Furnance
What is the temperature range, uncertainty, and emissivity of the BB500?
The BB500 operates from 50℃ to 500℃, with an uncertainty of ±(0.15+0.005%|t|)℃ and a standard emissivity of 0.95 (0.998 customizable), making it a reliable mid-high temperature solution for industrial IR thermometer calibration.
Can the BB500 calibrate IR thermometers used in industrial process monitoring (e.g., metal casting, glass production)?
Yes. The BB500’s 50℃~500℃ range and Φ60mm aperture make it ideal for calibrating IR thermometers in manufacturing, quality control, and process monitoring applications.
How to set and verify emissivity when customizing the BB500 to 0.998?
Specify the 0.998 emissivity option when ordering. We pre-calibrate the device, and you can verify it using a traceable IR thermometer or our calibration certificate.
How to address overheating or power issues with the BB500?
Ensure the 220VAC power supply is stable (±10%), check for ventilation blockages, and confirm the operating ambient temperature is within 5~44℃. For persistent issues, our support team will troubleshoot under its 2-year warranty.
