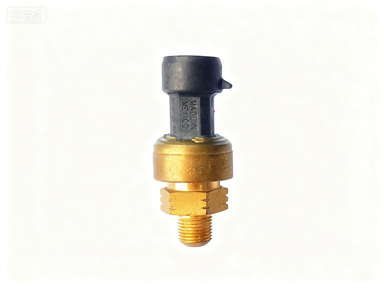

Sensata 2cp5 series
The 2CP5 series pressure transducer is a high-performance, reliable solution for industrial and HVAC/R applications requiring accurate pressure measurement. With its ceramic capacitive sensing technology, it delivers consistent performance in various working environments. Its versatility makes it suitable for various pressure monitoring applications, for both automotive and industrial automation.
Product Features
sensata 2cp5 series
The most advanced multi-channel Aquisition Data Logger and recording solution designed to meet the most stringent industrial testing requirements.
Ceramic Capacitive Technology
Direct pressure measurement without intermediate fluid, excellent long-term stability, suitable for harsh environments.
Temperature Compensation
Built-in compensation circuit maintains high accuracy across the entire temperature range with low temperature drift.
High Reliability Design
Equipped with overvoltage, short circuit and reverse voltage protection, strong EMC immunity and ESD protection.
Flexible Configuration
Optional gauge/absolute/sealed gauge measurement types, two connection materials and two seal materials.
Technical Specifications
2cp5 series Pressure sensor
| Parameter | Details |
|---|---|
| Measurement Type | Gauge/Absolute/Sealed Gauge |
| Pressure Range | 0-15 psi ~ 0-750 psi/0-1 bar ~ 0-50 bar (standard) |
| Accuracy | ±0.8% *F.S. |
| Total Error Band | ±1.0%（-20°C~+85°C）；±1.5%（-40°C~+125°C） |
| Operating Temperature | -40°C ~ +135°C |
| Proof Pressure | 15-75 psi: 5 times the rated pressure; 100-300 psi: 3 times the rated pressure; 500+ psi: 2 times the rated pressure |
| Supply Voltage | 4.5V~5.5V DC |
| Output Signal | 0.5V~4.5V DC（typical） |
| Response Time | 10ms |
| Overvoltage Protection | 16V DC |
| Reverse Voltage Protection | -14V DC |
| Output Load | 10K ohms typical |
| Pressure Port | 1/4″SAE female flare（with deflator）+ 7/16″-20 UNF-2B |
| Pressure Connection Material | Brass (exclusive to the 2CP5 series) or plated steel |
| Enclosure Rating | IP65 |
Model Selection
2CP5 series Pressure Transducer
| Product PN | Description | Applicattion |
| 2cp5-71-46 | Brass, 0 to 150 psia | Industrial AC/R pressure sensor |
| 2cp5-71-47 | Brass, 0 to 200 psia | Industrial AC/R pressure sensor |
| 2cp5-71-50 | Brass, 0 to 300 psia | Industrial AC/R pressure sensor |
| 2cp5-71-51 | Brass, 0 to 400 psia | Industrial AC/R pressure sensor |
| 2cp5-71-48 | Brass, 0 to 500 psia | Industrial AC/R pressure sensor |
| 2cp5-71-49 | Brass, 0 to 500 psia | Industrial AC/R pressure sensor |
| 2cp5-71-52 | Brass, 0 to 750 psia | Industrial AC/R pressure sensor |
| 2CP5-71-39 | Industrial AC/R pressure sensor | |
| 2CP5-71-40 | Carrier 30RH RA, | |
| 2CP5-71-64 | ||
| 2CP5-71-66 | Brass, 15-265psia | Industrial AC/R pressure sensor |
| 2CP5-71-67 | Industrial AC/R pressure sensor | |
| 2CP5-71-7-1 | ||
| 2cp5-71-123 | Brass | AC/R Pressure Sensor |
Industrial Applications
2cp5 Pressure Transducer
Discharge and suction pressure monitoring
Subcooling and superheat calculations
Air Compressor oil pressure monitoring
Air Compressor staging and unloading
Expansion valve control
Condenser fan
control
Refrigerant Coolant Pressure Monitoring
Marine Engines Pressure Mornitoring
Ready to Impletment in Your Application?
Our applications engineers work with you to design the optimal solution for yourspecific requirements, Get expert consultation and custom configuration support.
Request a Quote
Get a customized solution for your application！
FAQ
2cp5 Pressure Transducer
How does the ceramic capacitive technology benefit industrial pressure measurement?
A: Ceramic capacitive technology enables direct pressure measurement (no intermediate fluid), excellent long-term stability, and compatibility with harsh environments — reducing maintenance and extending service life.
What supply voltage/output signal does the 2cp5 Series use, and is it compatible with industrial control systems?
A: It uses a 4.5V-5.5V DC supply voltage and 0.5V-4.5V DC (typical) output signal — compatible with most standard industrial control systems (e.g., PLCs, data loggers).
What is the standard pressure range of the 2cp5 Series, and does it cover typical industrial system pressures?
A: Its standard pressure range spans 0-15 psi ~ 0-750 psi (or 0-1 bar ~ 0-50 bar), which aligns with most common industrial pressure measurement needs.
What pressure port and connection materials are available, and do they match standard industrial fittings?
A: The pressure port is 1/4″ SAE female flare (with deflator) + 7/16″-20 UNF-2B. Connection materials include brass (2CP5-exclusive) or plated steel — aligned with common industrial fitting standards.
