What is a mass flow sensor?
A mass air flow sensor (MAF sensor) measures the amount of air entering the engine to determine the correct fuel injection volume.
The function of mass air flow sensor is to ensures optimal air-fuel mixture in the Engines, affecting performance, fuel efficiency, and emissions of the engine.
Mass air flow sensor symptoms
* Check Engine Light
*10-15% increase in fuel consumption
* Hesitation or jerky acceleration
* Unstable idling or stalling
* Engine performance degradation
Maintenance Schedule
Regular inspection every 20,000 miles is recommended. Cleaning may be required if MAF sensor contamination is detected.
Replacement typically needed between 100,000-150,000 miles depending on operating conditions.
Mass Air Flow Sensors by Vehicle Brand

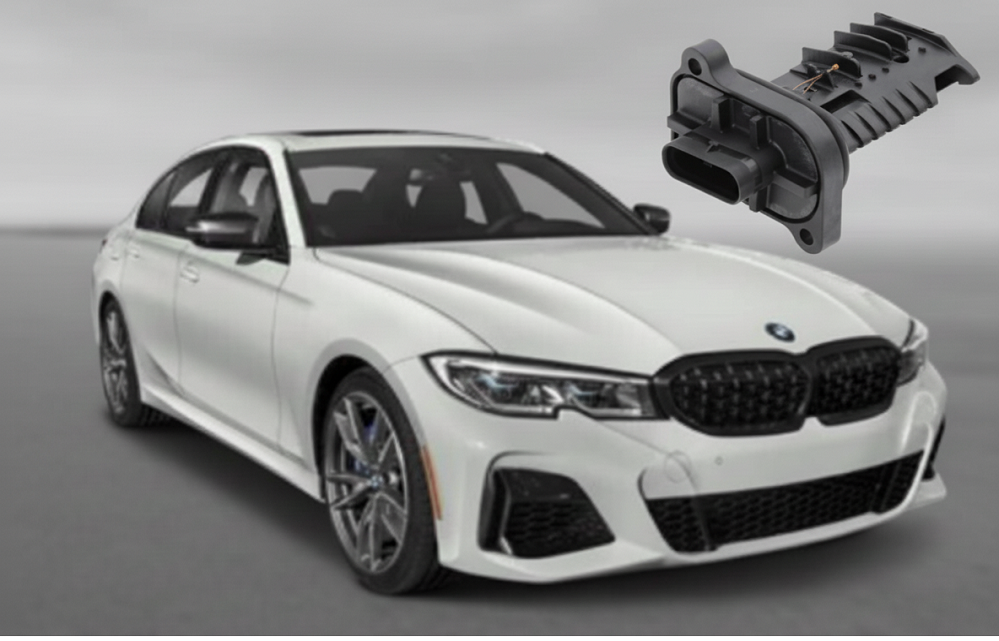

BMW MAF Sensors
Technical resources for BMW models including 3 Series, 5 Series, X5, and performance variants.

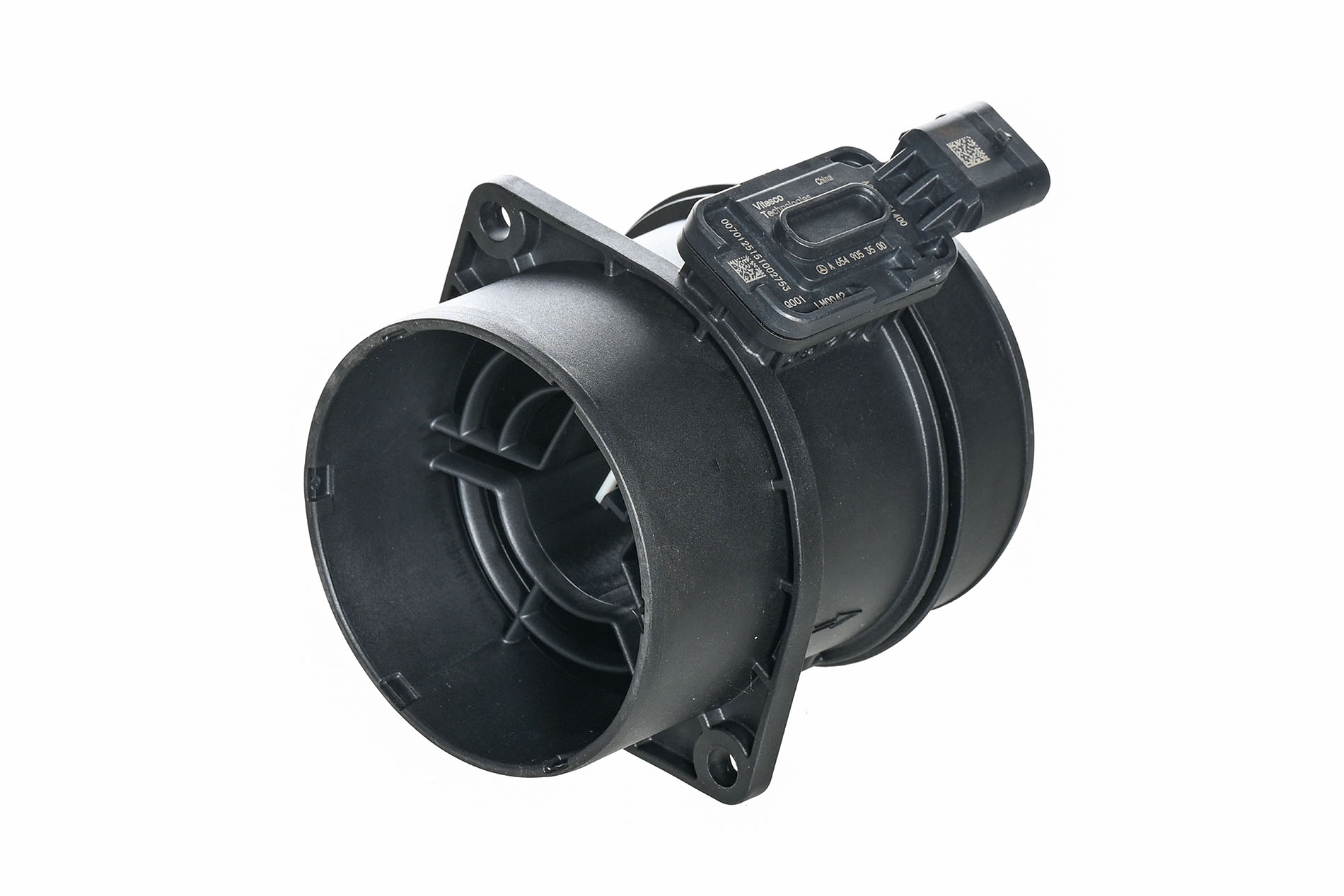

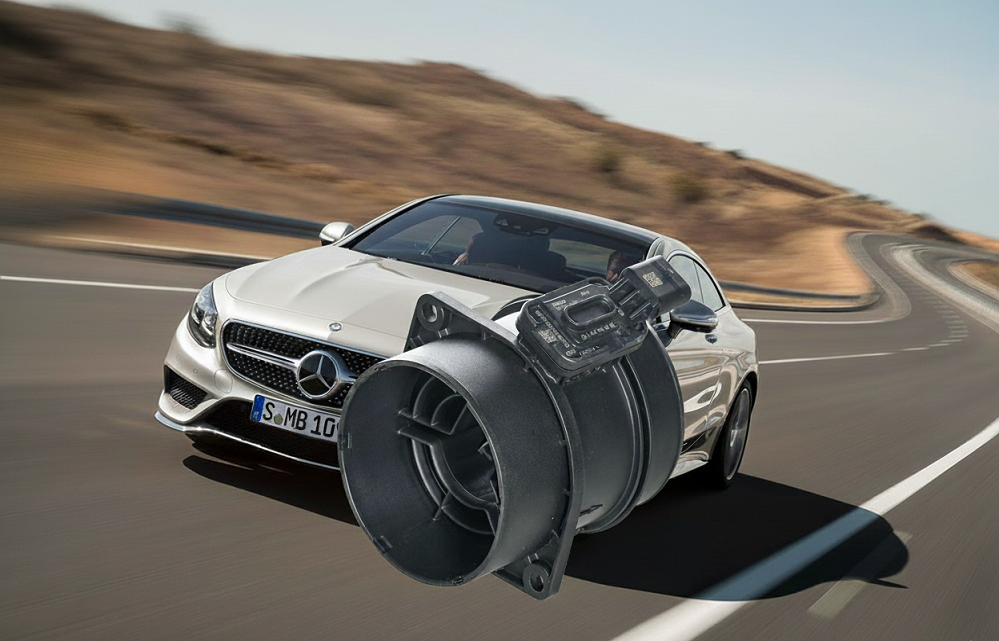

Air MAF Mercedes
Technical resources for BMW models including 3 Series, 5 Series, X5, and 5 Series, X5, and

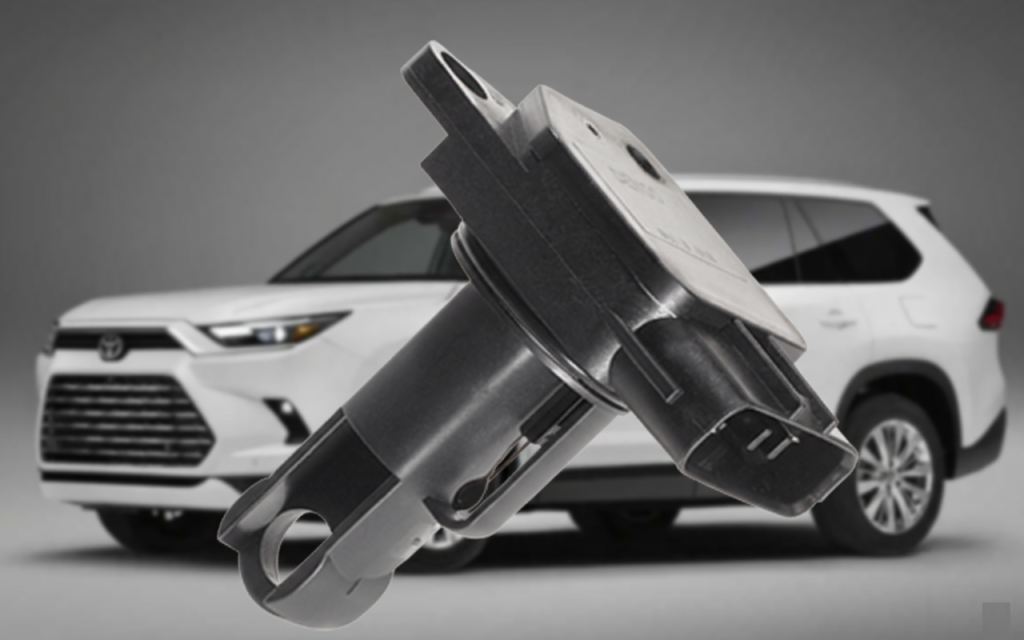

Toyota MAF Sensors
For most popular Toyota models including Camry, Corolla, RAV4, and more.

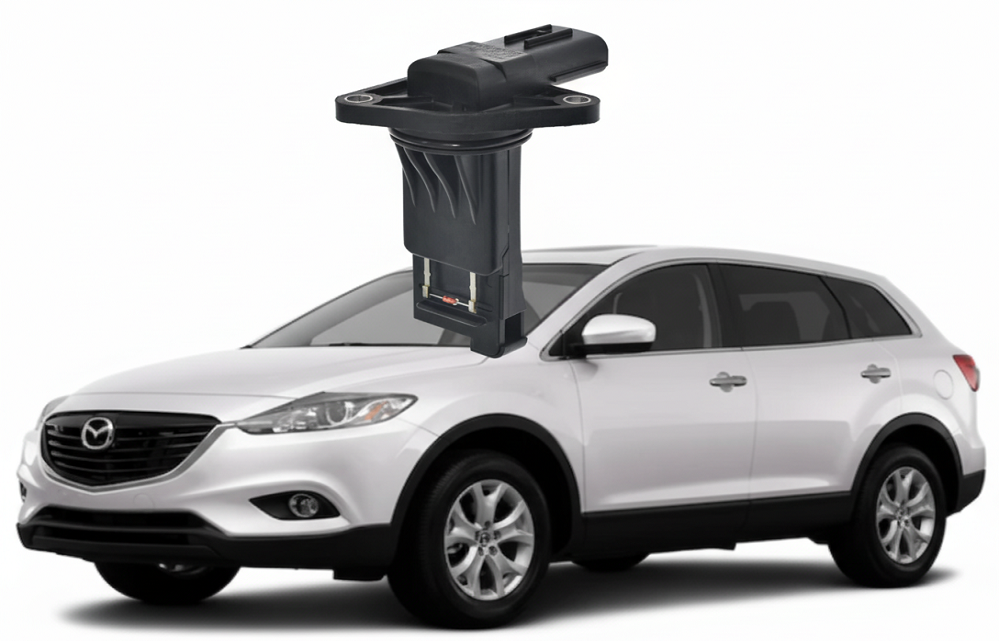

Mazada MAF Sensor
For Mazda vehicles including CX-5, Mazda3, MX-5, and CX-9 models, and more.
Common MAF Sensor Types

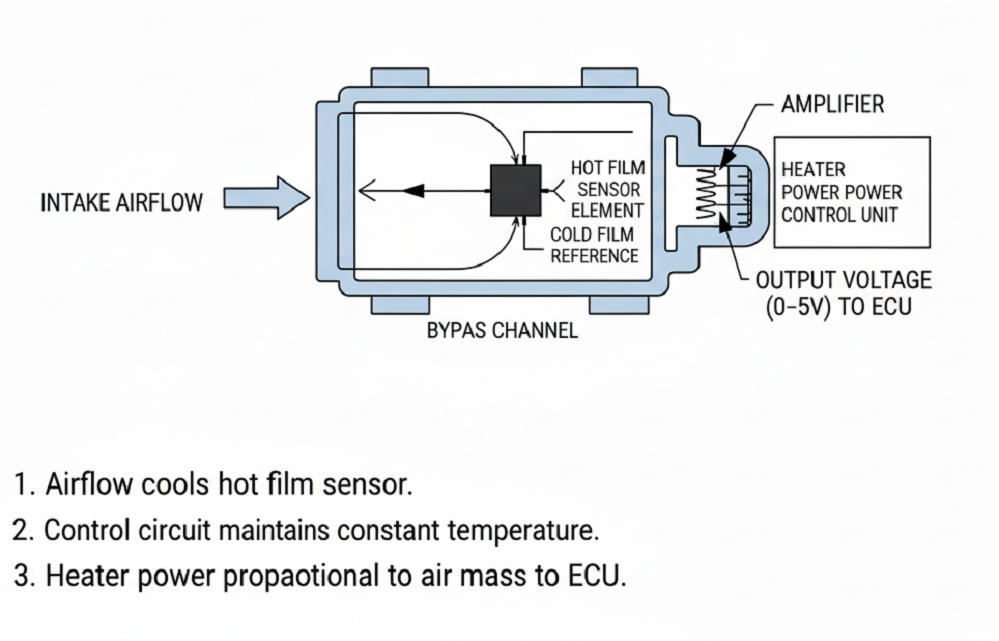

Hot Film MAF Sensor
- Similar principle to hot wire, but uses platinum film on substrate
- Thick-film technology integrates heating element and resistors
- Improved durability over hot wire design
- Less susceptible to contamination from airborne particles
- Common in modern vehicle applications
Hot Wire MAF Sensor
- Heats platinum wire above intake air temp.
- Mass air flow cools wire, reducing resistance and unbalancing circuit
- Current increases to keep wire temp stable.
- Current (proportional to airflow) becomes voltage for ECU.
- Need temperature compensation resistor

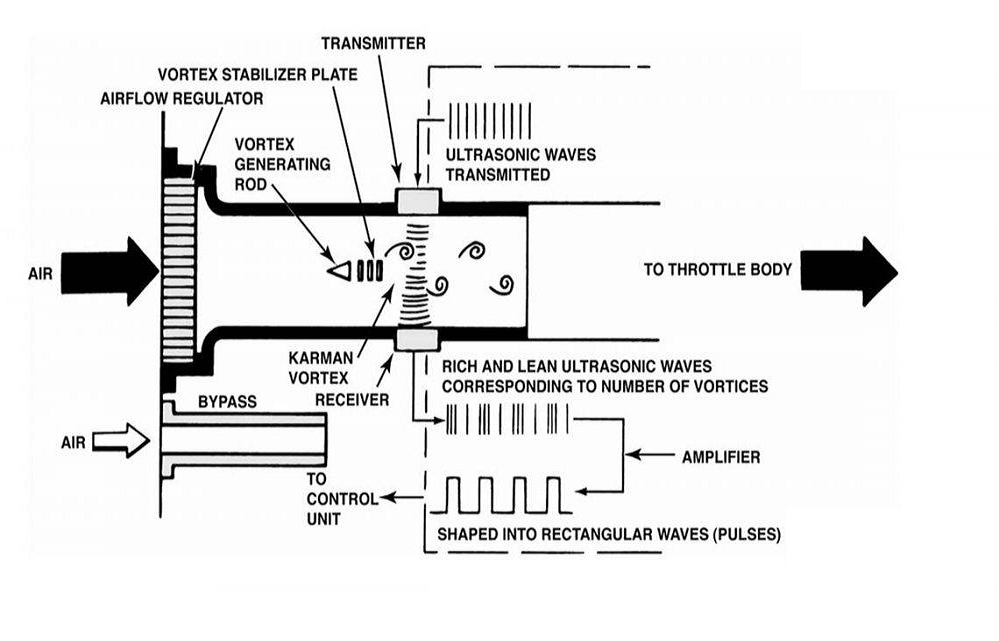

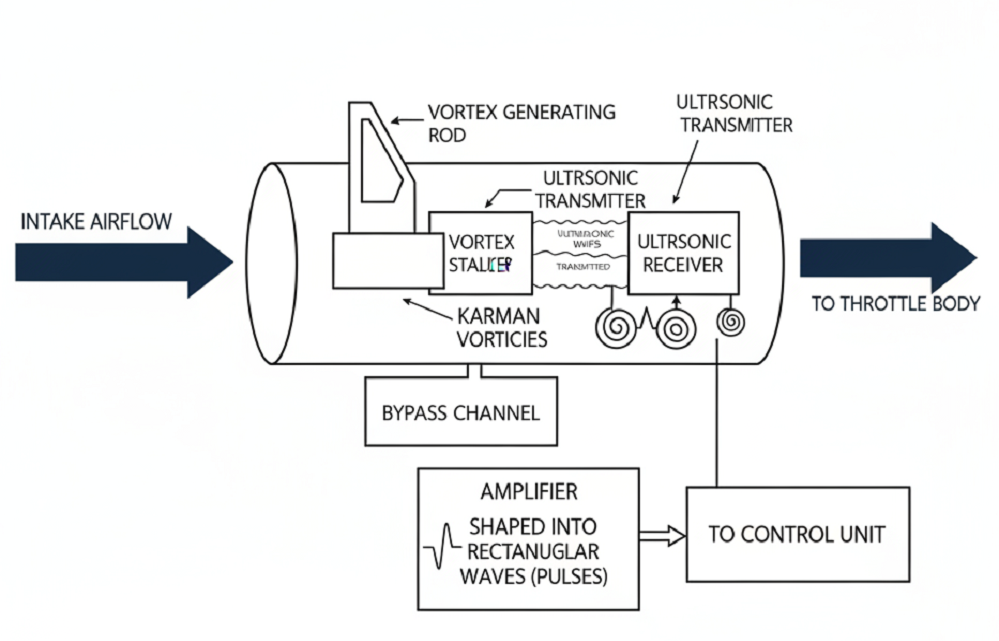

Kármán Vortex MAF Sensor
- Uses vortex generator in intake airflow
- Alternating vortices form downstream (Kármán effect)
- Vortex frequency directly proportional to air flow rate
- Vortices detected via ultrasonic waves or heated wire
- Once common in Japanese vehicles, now less prevalent

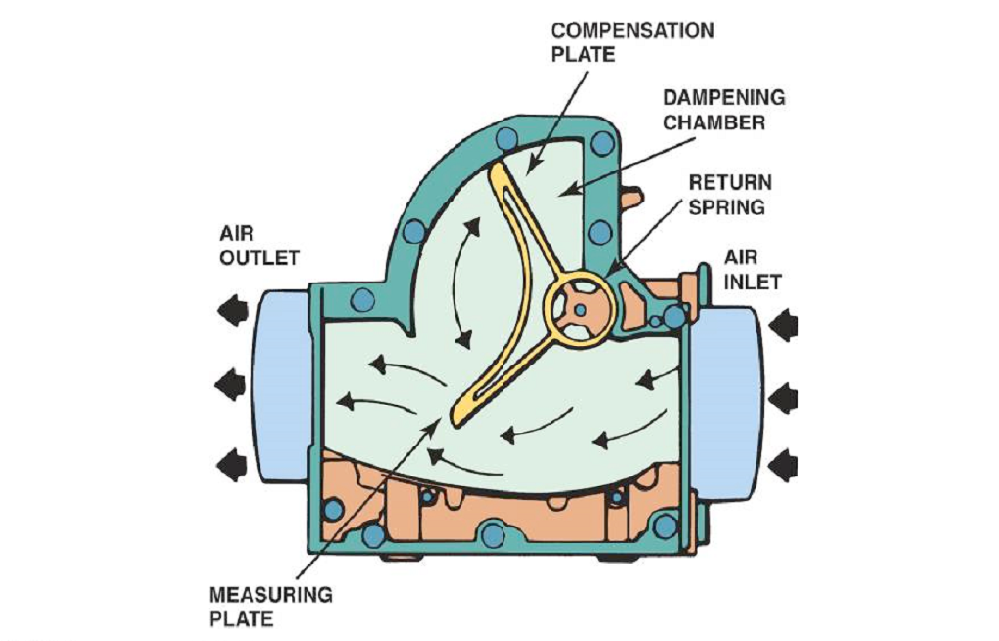

Vane MAF Sensor
- Spring-loaded vane extends into intake airflow
- Vane movement proportional to air flow, generating voltage signal
- Measures volume, requiring temp/pressure data for mass calculation
- Creates airflow restriction; moving parts prone to wear
- Obsolete in modern vehicles
MAF Sensor Technology Comparison
| Sensor Type | Accuracy | Durability | Airflow Restriction | Airflow Restriction |
|---|---|---|---|---|
| Hot Wire | High | Moderate | Low | Common |
| Hot Film | High | High | Low | Very Common |
| Karman Vortex | Moderate-High | High | Low | Less Common |
| Vane Meter | Moderate | Low | High | Obsolete |
Popular MAF Sensor Models
Bosch MAF Sensor Models
| Model | Operating Principle | Applicable Vehichles |
|---|---|---|
| 0280217810 | Hot Film | Mercedes-Benz C, CL, CLK, CLS, E, G, ML, R, S, SL, SLK, AMG (320, 430, 500, 600, 43, 55) |
| 0280218017 | Hot Film | Volkswagen Golf, EuroVan, Jetta |
| 0281002956 | Hot Film | Audi, Seat, Skoda, VW, MAN |
| 0281006092 | Hot Film | BMW and Mini models |
| 0280217121 | Hot Film | VW Beetle 98-04, Jetta 99-04 1.9L |
| 0280218259 | Hot Film | Ferrari 458 Spider, Ff 09-16 |
| 0280218429 | Hot Film | Vauxhall Adam, Astra, Corsa, Zafira |
| 0280217517 | Hot Film | Porsche 911, Boxster, Cayman |
| 0280218111 | Hot Film | Ford Focus, C-Max 1.6L-2.0L |
| 0280218359 | Hot Film | Hyundai Sonata, Tucson, Kia Optima |
| 986280208 | Hot Film | Volkswagen Euro Van, Golf, Jetta |
Delphi MAF Sensor Models
| Model | Operating Principle | Applicable Vehichles |
|---|---|---|
| AF10141 | Hot Film | Ford F-150, F-250, Nissan, Infinite |
| AF10209 | Hot Film | Chevrolet Silverado, GMC Sierra |
| AF10117 | Hot Film | Ford Ranger, Mazda B2300 |
| AF10135 | Hot Film | Volvo S60, S80, V70 |
| AF10058 | Hot Film | Chevrolet, GMC, Hyundai, and Kia |
| AF10043-11B1 | Hot Film | Buick LeSabre, Park Avenue |
| AF10320-11B1 | Hot Film | Chrysler 300M, Dodge Intrepid |
| AF10056-11B1 | Hot Film | Chevrolet Impala, Monte Carlo |
| AF10060-11B1 | Hot Film | Cadillac DeVille, Seville |
| AF10604 | Hot Film | Toyota Camry, RAV4 |
| AF10131-11B1 | Hot Film | Honda Accord, Civic |
| Af10135-12B1 | Hot Film | Volvo XC90, XC60, XC70, S80, S40 |
Denso MAF Sensor Models
| Model | Operating Principle | Applicable Vehichles |
|---|---|---|
| 197-6030 | Hot Wire | Lexus,Toyota,Scion, Pontiac |
| 197-6040 | Hot Wire | Mazda 3, 6, CX-7; Subaru Impreza |
| 197-6120 | Hot Wire | Suzuki Grand Vitara, SX4 |
| 22204-22010 | Hot Wire | Lexus ES300, RX300 |
| 22204-0V020 | Hot Wire | Toyota Camry, Solara; Lexus ES330 |
| 22680-5RB0A | Hot Wire | Nissan Altima, Rogue; Infiniti QX60 |
| 37980-5BA-A01 | Hot Wire | Honda Accord, Civic, CR-V |
| 197-6020 | Hot Wire | Lexus LS430, Toyota Avalon |
| 22204-21010 | Hot Wire | Lexus IS300, GS300 |
| 22360-65F00 | Hot Wire | Toyota Tundra, Sequoia |
| 22680-31U0A | Hot Wire | Nissan Sentra, Versa |
Related Products
197-6030
Mass Air Flow Sensor
$125.21
- Fitment: Toyota
- Yaris L
- Yaris LE
- Yaris XLE
A6549053500-AA
Mass Air Flow Sensor Mercedes-Benz Hot-film theory
$185.5
- Valid for:
- MG3- Engine , MI1- Engine, MI2- Engine , MR4- ENGINE

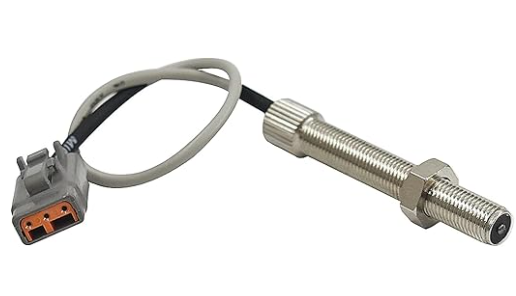

0D2244M
Magnetic Pickup Sensor
$16.99
Operating Temp:
Connector Type:
-40°C to 125°C
3-Pin
Frequently Asked Questions
Common questions about Mass Air Flow sensors and their operation.
What does mass air flow sensor do?
A mass air flow sensor (MAF sensor) measures the mass of air entering an engine. It sends this data to the ECU, which calibrates fuel injection for optimal air-fuel ratio—key for performance, fuel efficiency, and emission control.
Does an air flow meter affect fuel consumption?
Yes, If a fuel injection air flow meter (MAF sensor) gose bad, for example MAF sensor is malfunctioning or gets dirty, it may cause the vehicle consume more than usual.
What are the symptoms of a failing MAF sensor, and how does it harm engine function?
Mass air flow sensor symptoms include rough idling, acceleration hesitation, increased fuel consumption, and check engine lights. A bad MAF sensor disrupts air-fuel balance, leading to misfires or reduced power.
Can a car have both MAP and MAF sensor?
Many modern vehicles, particularly those with turbocharged or supercharged engines, use both a mass air pressure sensor (MAP) and a vehicle mass air flow sensor (MAF) to ensure precise measurement of incoming air and maintain the correct air-fuel ratio. The vehicle mass air flow sensor records the actual volume of air entering the engine, while the mass air pressure sensor detects the pressure inside the intake manifold. Together, these sensors provide complementary data to the Engine Control Module (ECM) for optimal performance and efficiency.
