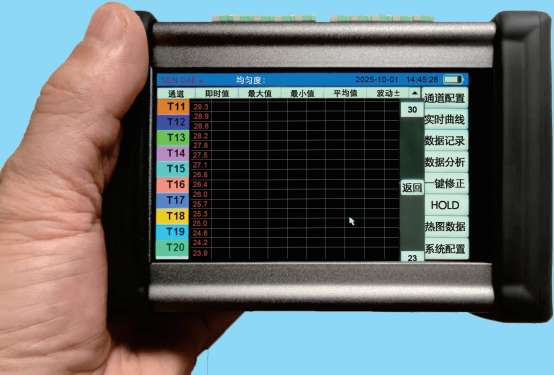

SENDAE-TM-CH10/20
temperature data logger recorder
The world’s smallest capacitive touchscreen smart device for industrial-grade Portable data acquisition system with ultra-high accuracy and advanced data analysis capabilities.
5000+
Customer’s choice
20+
Years Expertise
96+
Success Rate
Product Overview
Multifunction DAQ
The most advanced multi-channel Aquisition Data Logger and recording solution designed to meet the most stringent industrial testing requirements.
Ultra-High Precision
Channel-to-channel deviation as low as ±0.01℃ with temperature measurement accuracy of ±0.05%, ensuring reliable data for applications.
High-Speed Acquisition
Configurable sampling intervals from 0.001s to 1s intervals, providing flexibility for various scenarios.
Advanced Analysis
Comprehensive data visualization with numerical analysis, curve analysis, and array thermal map analysis capabilities.
Data Storage
Massive Internal storage memory with cloud connectivity options to ensure mass data recording and transmission.
Connectivity
Multiple communication protocols options including USB and 4G.
Intuitive Display
High-resolution 4.3″ capacitive color touchscreen with customizable layout.
Why choose our Temperature Recording Analyzer ?
Technical Specifications
10/20 Channel data acquisition system
| Parameter | Details |
|---|---|
| Display | 4.3″ capacitive touchscreen, 800×480 resolution |
| Sampling Interval | ≥1s (standard); 0.01s/0.001s (optional); 0.1s (curve interface disabled) |
| Thermocouple Accuracy | ±(0.15∘C+0.15%). Deviations exist due to different thermocouple types and temperature zones. T-type and B-type thermocouples are recommended (preferred choices). |
| Thermal Resistance Accuracy | ±(0.02∘C+0.05%) |
| Voltage Accuracy | ±0.05% |
| Resolution | 0.1/0.01/0.001 （Switchable） |
| Digital Refresh Frequency | Standard 0.1s (all channels simultaneously) |
| Digital Refresh Frequency | 0.2s |
| Input Configurations | 10-channel thermocouple + voltage input 20-channel thermocouple + voltage input 10-channel 4-wire Pt100 + thermocouple + voltage input |
| Data Export | Excel format via USB connection to PC |
| Memory Capacity | 32G / (Optional 64G) |
| Data Storage Capacity | Stores up to 4,200 calibration values for 200 probes |
| Power Supply | Built-in 8000mAh battery (8 hours continuous operation in 10-channel mode) + USB external power supply |
| Dimensions | 130×90×48mm (including protective sleeve) |
| Weight | 500g (product); 770g (product+ plastic case) |
| Communication Interfaces | USB 2.0 type C (data transfer), optional RS485/4G/433MHz (wireless) |
| Input Expansion | 10-channel temperature and humidity input 10-channel illuminance input 10-channel wind speed input 10-channel comprehensive parameter input 10/20-channel voltage input (DC: 0-2V/0-10V/0-100V) |
Industrial Applications
application of data acquisition system
The SENDAE-TM-CH10/20 Series thermocouple data acquisition system is designed to excel in various industrial environments and applications.
Thermal
Chamber
Calibration
Multi-point temperature mapping in environmental test chambers, ensuring uniformity compliance with ISO/IEC 17025 requirements.
Temperature
Standard Verification
Primary standard comparison for verifying working standards against national references in metrology institutes.
Hierarchical Traceability Networks
4G/RS485 network connectivity,
Cloud-based calibration management through remote monitoring.
Environmental Monitoring
Automated comparison of industrial thermometers against reference standards Ensuring stable conditions for primary standards storage and calibration operations.
Metrology Institute
Measurement value transfer, standard calibration, multi-point monitoring and data traceability.
Manufacturing
Process monitoring, quality control, and equipment temperature tracking.
Pharmaceutical
Precise temperature monitoring during drug manufacturing and storage.
Lab Research
Provides precise temperature data for scientific experiments and material testing.
Ready to Impletment in Your Application?
Our applications engineers work with you to design the optimal solution for yourspecific requirements, Get expert consultation and custom configuration support.
Request a Quote
Get a customized solution for your application！
