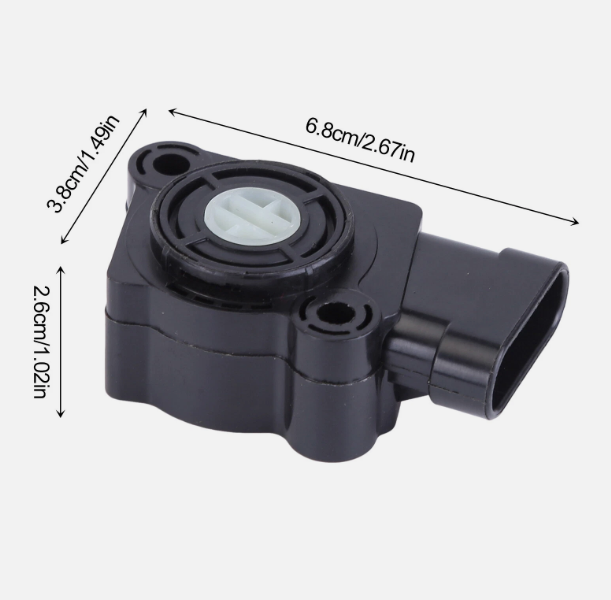

Williams Control 134734
The 134734 williams control is a high-precision dual-channel non-contact rotary position sensor designed for Cummins engines (2007+), providing IP66-rated durability and fail-safe dual APS output for superior throttle control reliability.
Technical Specifications
william controls 134734
Technical Specifications
Critical Performance Data and Engineering Standards
| Parameter | Details |
|---|---|
| Sensing Technology | Non-Contacting Hall Effect |
| Operating Voltage | 5.0 VDC ± 0.5V |
| Output Type | Dual Ratiometric APS |
| Operating Temperature | -40°C to +85°C |
| Connector | Integral Metri-Pack 150 Series |
Product Features
134734 williams control
Non-Contacting Hall Effect Technology
The 134734 sensor utilizes advanced magnetic sensing instead of traditional contact-based wipers, achieving a mechanical life of over 10,000,000 cycles.
Dual Redundant APS Signals
Safety is prioritized through a dual redundant APS architecture, allowing the vehicle’s ECM to perform real-time parity checks and safety routines.
IP67 Sealed Environmental Protection
Designed for the harshest industrial conditions, featuring an IP67-rated enclosure that ensures protection against dust and water immersion.
Applications
Wil 134734
- Heavy-Duty Commercial Trucking: The 134734 is a primary choice for Class 7 and 8 trucks, specifically serving as a direct replacement for Navistar International and Mack platforms. Its high reliability ensures consistent throttle response across millions of miles.
- Off-Highway and Construction Equipment: Due to its IP66 rating and non-contact design, this sensor is widely integrated into excavators and loaders. It resists the ingress of abrasive dust and maintains precision even during extreme chassis vibration.
- Agricultural Machinery: Used in modern tractors and harvesters, the 134734 provides the sensitive throttle feedback required for precision agricultural tasks while withstanding constant heat cycling in open-field environments.
- Marine Propulsion Systems: The hermetically sealed electronics make it suitable for marine engine controls where moisture and salt-spray corrosion would typically compromise contact-based sensors.
- Power Generation Sets: In stationary diesel generators, the dual-channel redundancy of the 134734 ensures stable engine governor control, which is vital for maintaining consistent frequency and voltage in critical power applications.
Interchangeable Part Numbers
williams controls 134734 cross reference
| Parameter | Part Number |
|---|---|
| Navistar OEM | 1697269C91, 1697269C92, 2607117C91 |
| Mack | 6322-400506, 6322-131490 |
| Williams Controls | williams controls WCS-134734 |
| Aftermarket | Dorman 977-023, ACDelco 213-4635,Bosch 0280122031X, Freightliner WIL131973, 94600-8C100 |
Williams Controls Part Numbers Explained
Williams Controls TPS Models by Series:
134000 Series (Dual-Redundant Heavy-Duty)
- 134143 – Standard dual-redundant TPS (most common variant)
- 134030 – Alternative mounting configuration
- 134734 – Enhanced vibration resistance variant
- 134168 – TPS kit for Cummins engines
- 134811W1L – TPS for Caterpillar engines
133000 Series (General Heavy-Duty)
- 133313 – Common TPS for International/Navistar
- 133284 – Popular TPS for Volvo/Cummins: WCS-133284
- 133693 – Additional variant
- 133904 – Listed in cross-reference
132000 Series (Special Applications)
- 132431W1L – TPS with specific connector
- 132484W1L – 8V TPS for Caterpillar
- 132035W1L – Sensor kit with harness
131000 Series (Remote Mount/Alternative)
- 131973 – Major cross-reference Thorttle position sensor (used by multiple OEMs)
- 131040 -For Navistar, Volvo, and Cummins engine systems. see more details about WCS-131040.
- 131490 – TPS kit
- 131032/WM-531 – Remote mount variants
- 131469 – Listed in catalog
340000 Series (Supersession)
- 340000 – Replaces 133313 in newer applications
WM Series (Non-Contact/Advanced)
- WM-830 – Non-contact Hall-effect position sensor
- WM-526 – Electronic floor pedal assembly
- WM-498-D – Aviation component (not TPS)
Ready to Impletment in Your Application?
Our applications engineers work with you to design the optimal solution for yourspecific requirements, Get expert consultation and custom configuration support.
Request a Quote
Get a customized solution for your application！
FAQ
williams controls 134030
Is the 134734 compatible with Detroit Diesel engines?
Generally, no. This sensor is calibrated specifically for Cummins Engines (2007+). While it physically fits some other models, you must verify the OEM part number to ensure the voltage slope matches your ECU requirements.
Why are there two different voltage ranges for APS1 and APS2?
This is a standard safety feature. APS1 (22-84%) and APS2 (11-42%) provide a “half-slope” redundancy. If the signals do not correlate correctly, the ECU identifies an electrical fault to prevent unintended acceleration.
How do I recalibrate the sensor after installation?
With the ignition in the ON position, slowly and fully depress the accelerator pedal from idle to full throttle. Repeat this procedure three times to allow the ECU to learn the new sensor’s operating range.
Does this kit include a mating connector?
The sensor features an integral Metri-Pack 150 6-pin interface. While the sensor kit (134734) is a direct replacement for the 134030, the mating harness is typically part of the vehicle’s original wiring loom.
